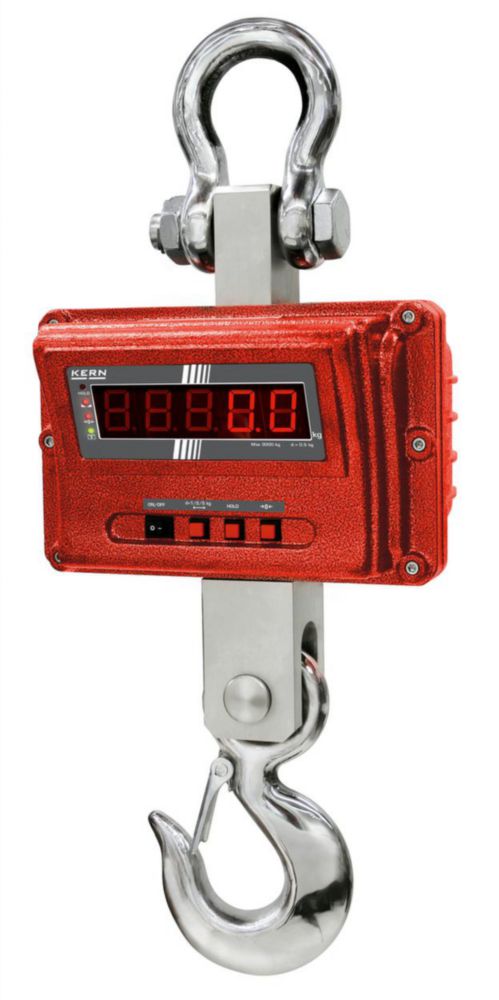

Crane balances HFM
CHF 2,608.65*
Content:
1
Delivery according to order confirmation
Product number:
4660267
Manufacturer:
Kern & Sohn GmbH
Packaging information:
Weight:
6 kg
Description
Robust industrial crane balance with bright LED display for optimum reading in unfavourable ambient conditions. With the TÜV certification mark, the balance meets the requirements of the standard EN 13155 and EN 61010-1.
Scope of supply: Crane balance, radio remote control (W×D×H 48×10×95 mm), batteries, hook with safety catch, revolving
Scope of supply: Crane balance, radio remote control (W×D×H 48×10×95 mm), batteries, hook with safety catch, revolving
Properties
| Adjusting program: | External |
|---|---|
| Battery/rechargeable battery: | 6 V, Pb |
| Depth: | 190 mm |
| Dimensions (WxDxH): | 300 x 190 x 850 mm |
| Electrochemical system: | Pb |
| Height: | 850 mm |
| Manufacturer Article Number: | HFM 10T1 |
| Material housing: | Die-cast aluminium |
| Max. load: | 10000 kg |
| Max. voltage: | 240 V·AC |
| Max. voltage battery/rechargeable battery: | 6 V |
| Min. voltage: | 220 V |
| Plug type: | EU/UK/CH/US/AUS |
| Power supply: | 220 ... 240 V·AC, 50 Hz |
| Power supply frequency: | 50 Hz |
| Readability: | 1 kg |
| Reproducibility: | 5 kg |
| Type: | HFM 10T1 |
| Type of auxiliary energy: | Mains connection/rechargeable battery |
| Warranty: | 3 years |
| Weight: | 34 kg |
| Width: | 300 mm |
